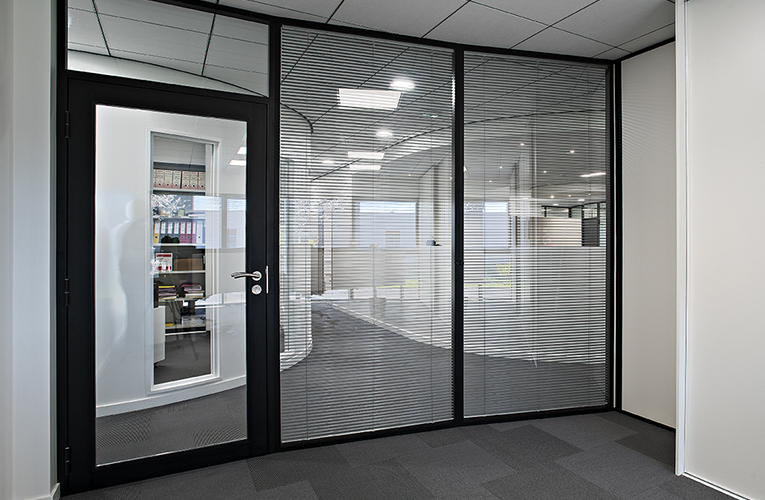

H7 Standard | Partition with aluminium frame

CERFF + GARDE CORPS

H7 Standard | Partition with aluminium frame H7 Standard | Partition with aluminium frame

Easy, versatile and aesthetic, the H7 partition with aluminium is the key solution for the fittings of your offices. Relocatable and with many kinds of implementation, fillings of H7 partition are maintained with 30 mm cover trims. This partition has the largest quantity of acoustic tests in order to answer to the largest of configurations.

Std dimensions
Thickness 75mm
Height 3000mm*
*upon request
Fillings
Double panels (12 to 13mm)
Single or double glazing (6 to 8,8mm - 44/2)
Coatings
Melamine faced - Laminated - Vinyl - Metal sheet
Acoustic
41 - 52 dB Rw
37 - 48 dB RA
Feature(s)
Environment
HQE® - LEED® - BREEAM®
Upholstery(ies)
Dimension(s) (mm)
Option(s)
Contact us

Specific aspects

Configuration(s) | H7 partition

Assembly | H7 partition

Partition with cover-trims finish, 30 mm

Aluminium tubular frame, 75mm thickness

Assembly :

  • Spring screw / bracket
  • Eccentric screw / bracket

Horizontal and vertical correction of uneven levels

Options :

Doors | H7 partition

Doors options:

  • Swing doors / Sliding doors
  • Hinges / Pivots
  • with or without over panel

Recommended doors:

All our doors
